Linear Guide Slider

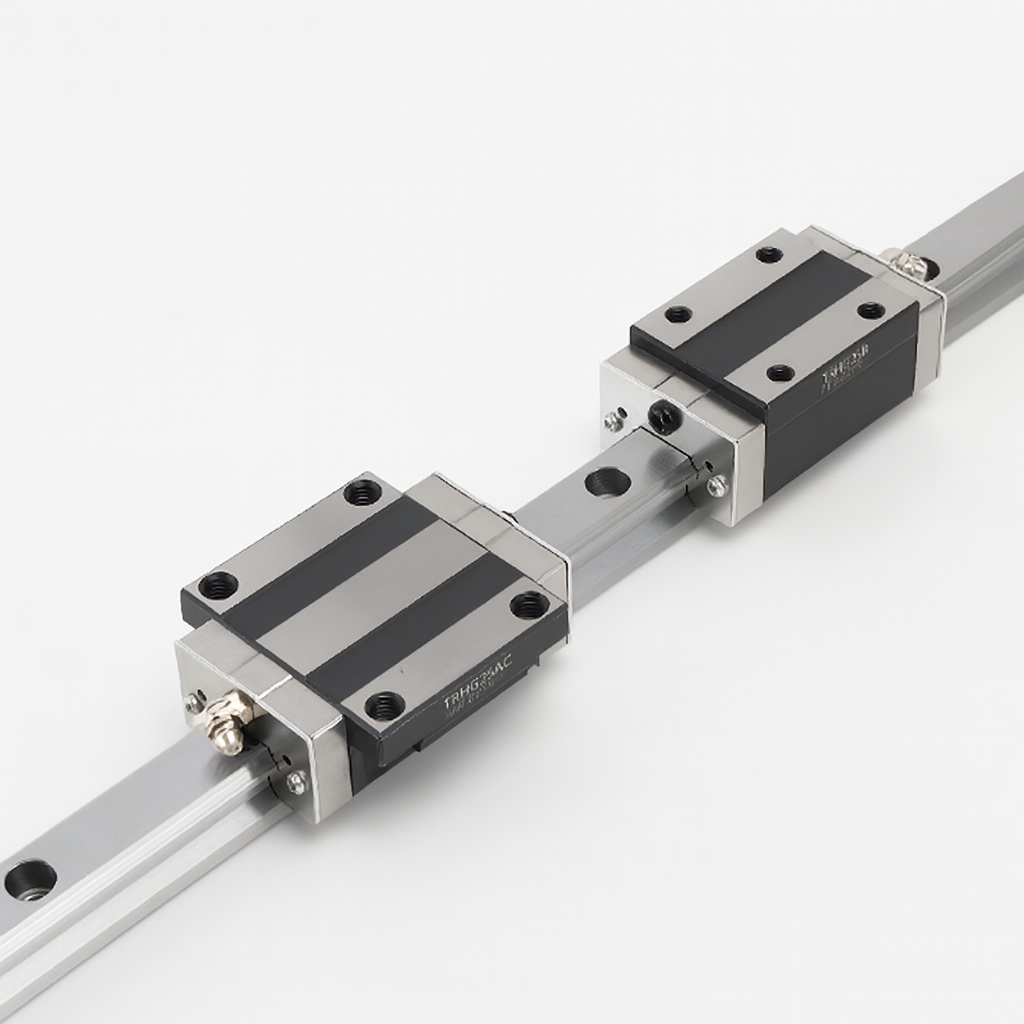

This is a linear guide rail system with square-type carriages, a high-precision motion component for CNC machine tools and automation equipment.

Function: Provides smooth, precise linear motion with high rigidity and load capacity, supporting both radial and axial forces. It minimizes backlash and ensures consistent positioning accuracy, even under heavy loads or high-speed operation.

Structure: A hardened steel guide rail paired with two preloaded carriages, which contain recirculating ball bearings for low-friction movement. The carriages feature mounting holes for direct attachment to moving loads, and the rail has threaded holes for secure fixation to machine frames.

Performance: Rated for dynamic load capacities from 15 kN to 50 kN, with linear speeds up to 15 m/s. The steel components are corrosion-resistant, and the system is compatible with lubrication systems for long service life.

Application: Widely used in CNC milling machines, laser cutters, robotics, and automated assembly lines, where high precision and reliable linear motion are critical.
