Panasonic Motor Drive

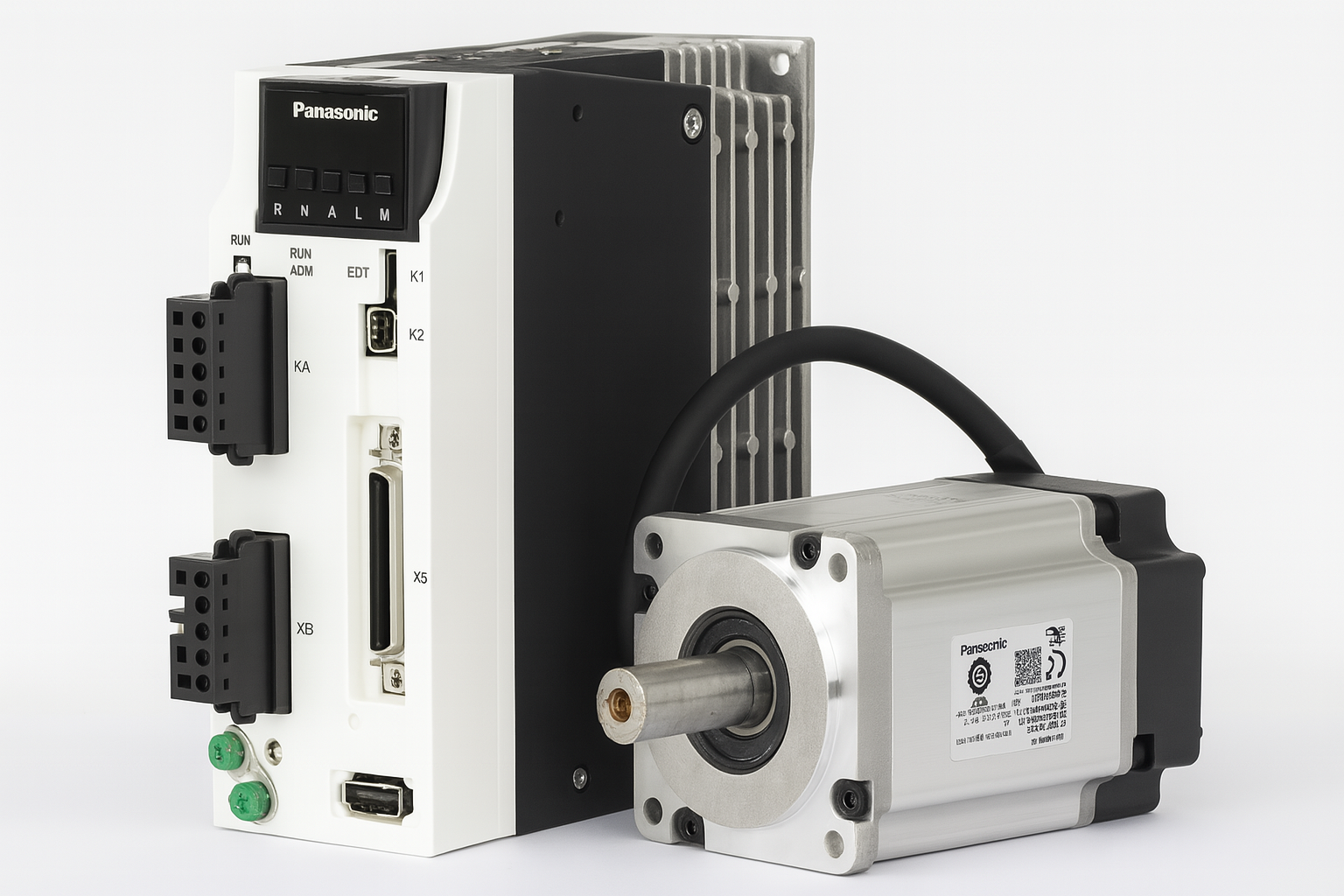

This is  Panasonic AC servo drive and motor system, a high-precision motion control solution for industrial automation.

1. Servo Drive  (Left)

Function: Converts AC power into precise, variable-speed power for the motor, using encoder feedback to achieve closed-loop position, speed, and torque control. It features high responsiveness and low vibration, ensuring stable performance in dynamic applications.

Structure: A modular unit with a built-in heat sink, multiple I/O ports (digital, analog, and communication interfaces like Ethernet/USB), and a status indicator panel (R, N, A, L, M). It supports real-time feedback and parameter adjustment via its control interface.

2. Servo Motor  (Right)

Function: Delivers precise rotational motion with minimal backlash, enabling accurate positioning and smooth speed regulation. It is designed for high acceleration/deceleration cycles and continuous operation in demanding industrial environments.

Structure: A compact, high-torque permanent magnet synchronous motor with an integrated high-resolution encoder (typically 23-bit absolute). The aluminum housing provides efficient heat dissipation, and the keyed shaft ensures secure coupling to mechanical loads.

Application

This system is widely used in CNC machine tools, packaging equipment, robotics, and semiconductor manufacturing, where high precision, fast response, and reliable performance are critical.
