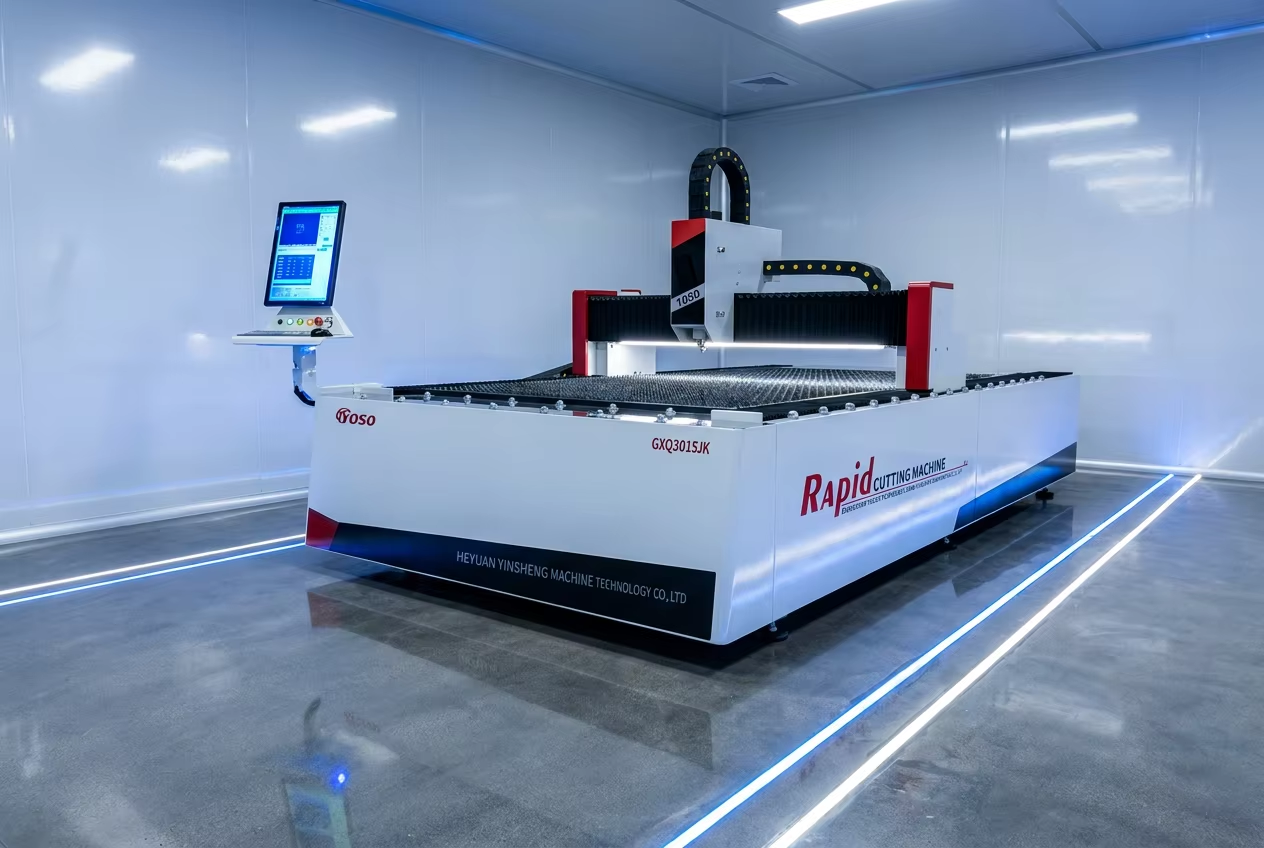

GXQ3015JK

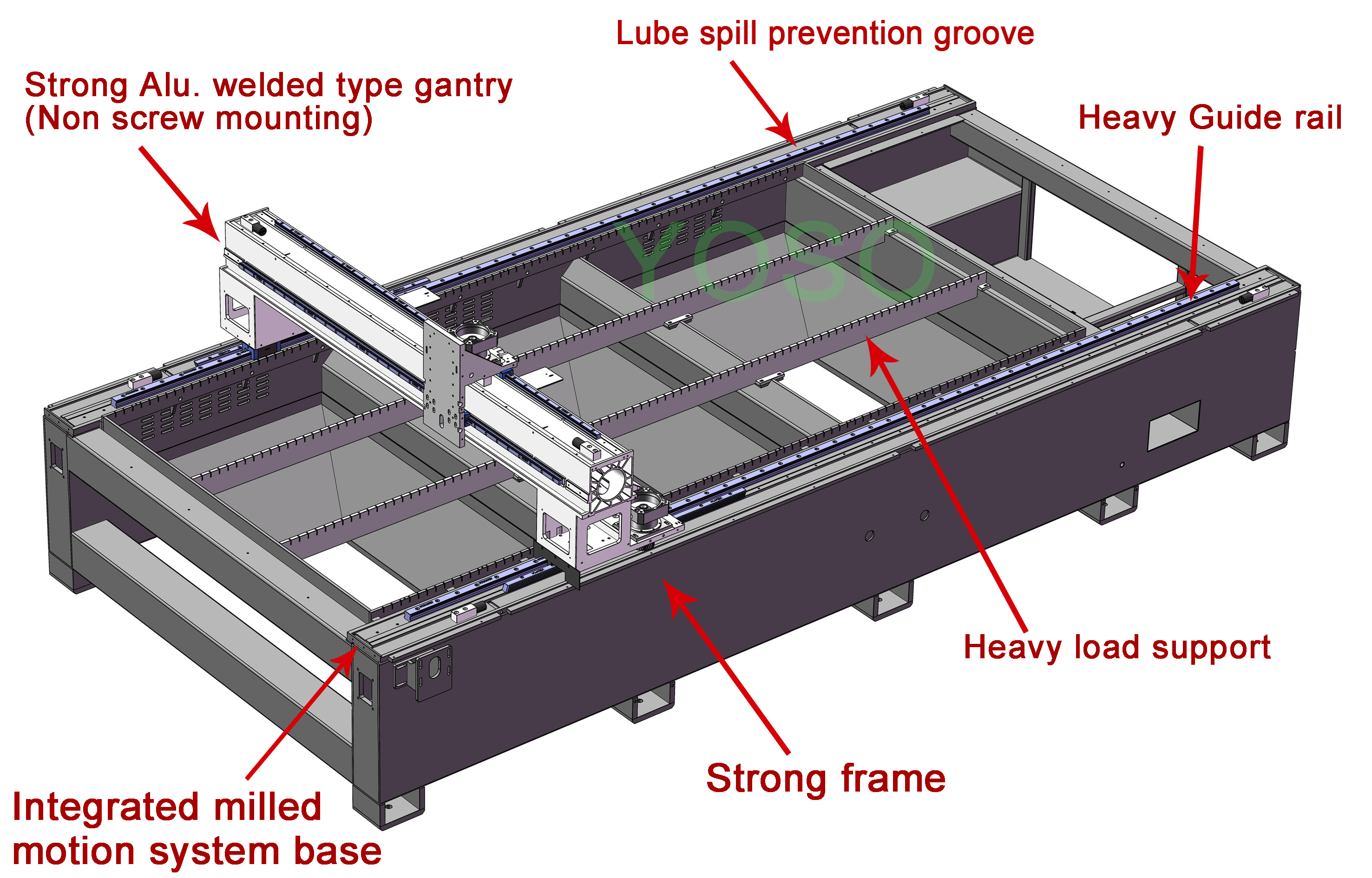

      This machine's main frame is adopts double tube overlap joint structure, the double tube overlap welding structure provides a complete double-layer connection between the box-beams on both sides of the machine body. it compare with the plate welding structure where the middle connecting plate can only be spot welded in a single layer, this structure has higher mechanical strength and plays an important role in improving the anit-torsional / anti-bending  performance of the machine tool.
     The motion components of this machine adopts  heavy-duty configuration, it ensured accuracy/speed meanwhile also having higher wear resistance.can be match with middle-high power hardware requirements, the machine's have designed dropping slot on both sides of worktable, that is not have in most machines on the market, this dropping slot let the cutting slags / metal dust generated during machine working can be fall into the waste trolley at the bottom of the machine timely, it avoided cutting slags / dusts entering the motion area to effect the accuracy and working life of machine, this design is good fitting with high power machine.

      Optimize the body structure design, machine body adopts heavy raw materials welded, emphasize to machine overall stability, this design & producing ideal fundamentally ensured the quality of the machine body. The anti overflow groove design allows excess lubricating oil to be discharged into the designated area for easy collection, effectively avoiding lubricating oil overflow and pollution.

Normal machine body in market

       Lightweight integrated aluminum profile welded crossbeam improves the control accuracy of mechanical moving parts in the system, reduces the load of motor emergency stop and acceleration, and makes the motor run at high speed more stably for a long time. Compared with screw jointed aluminum crossbeam, the integrated welded aluminum beam has higher reliability, avoiding the problem of deformation caused by impact of screw riveting crossbeam and reducing mechanical failures.

Unique scrape fall slot
